mTOR Core · Lesson 05 · Intermediate · 25 min

The Lysosome as a Signalling Platform

Why the cell's recycling compartment turned out to be where the growth decision is made

The question

Why does it matter where mTORC1 is?

What you should be able to do

After this lesson you should be able to

Explain why bringing a kinase and its activator together is itself a regulated step.
Distinguish recruitment from activation, and say what evidence would separate them.
Interpret an inhibitor result on a compartment whose several jobs cannot be separated by the inhibitor alone.
Trace the loop that runs from the lysosomal surface to the nucleus and back.

Research skill Spatial reasoning

The core idea

For most of the pathway's history the lysosome was the cell's disposal system: an acidic compartment full of degradative enzymes, the place things go to be broken down. The finding that reorganised the field is that this compartment is also a signalling platform — a surface on which the machinery that decides whether the cell grows is assembled.

The logic is worth stating before the parts list. mTORC1's activator, Rheb, is associated with intracellular membranes including the lysosome. mTORC1 itself is largely cytosolic. So the kinase and its activator are not automatically in the same place, and bringing them together is itself a regulated step. Amino acids are the signal that performs the bringing-together, and the Rag GTPases, held on the membrane by the Ragulator complex, are the machine that does it.

That gives the pathway a property most signalling diagrams cannot express: two inputs that cannot substitute for one another, because they act on different physical requirements. One decides location, the other decides the state of the activator waiting at that location. Docking is not activation. Being at the lysosome is what makes activation possible.

The lysosome used to be described as the cell's rubbish-processing compartment. It turns out to also be the surface where the decision to grow gets made.

The reason is simple. mTORC1's switch, Rheb, sits on that membrane, and mTORC1 itself floats in the rest of the cell. Bringing them together is a step that has to be controlled — and amino acids are what controls it.

So being at the lysosome is not the same as being switched on. It is what makes switching on possible.

The mechanism, in outline

The Rag GTPases work as heterodimers — RagA or RagB paired with RagC or RagD — and unlike Rheb they are not membrane-anchored themselves. They are held at the lysosomal surface by Ragulator, a multi-subunit complex that both tethers them and acts on their nucleotide state. When amino acids are available, the Rag dimer adopts the nucleotide configuration that binds RAPTOR, and mTORC1 is recruited from the cytosol to the membrane, where Rheb is.

The signal does not begin outside the lysosome. Amino acids accumulating in the lumen are read from the inside, and the vacuolar H⁺-ATPase — the proton pump that acidifies the compartment — is required to relay that information outward to Ragulator and the Rags. This 'inside-out' arrangement is genuinely odd on first meeting, and it is one of the better arguments that the lysosome is not merely a convenient surface but part of the sensing apparatus.

SLC38A9, a lysosomal membrane protein with an amino-acid transporter fold, sits in the same assembly and links lumenal amino-acid content — arginine in particular — to Rag activity. Structural work has since described how mTORC1 docks onto the Rag–Ragulator scaffold, which turns a cartoon arrow into a described interaction surface.

The traffic runs outward as well. TFEB, a transcription factor for lysosomal and autophagy genes, is phosphorylated in an mTORC1-dependent manner at the lysosomal surface; phosphorylated, it stays in the cytosol, and when mTORC1 activity falls it enters the nucleus. So the same platform that reports the cell's nutrient state also controls the transcriptional program that builds more lysosomes — a loop from the organelle to the genome and back.

A group of proteins called the Rag GTPases sits on the lysosome, held there by a complex called Ragulator. When amino acids are available, the Rags grab mTORC1 and pull it to the membrane.

Oddly, the amino acids being counted are inside the lysosome, not outside it. The pump that makes the compartment acidic is needed to pass that information out to the Rags.

Traffic also runs the other way: a protein called TFEB is held outside the nucleus while mTORC1 is active, and goes in when it is not — switching on the genes that build more lysosomes.

Interactive model

Docking is not activation

Amino acids

Lysosomal acidification

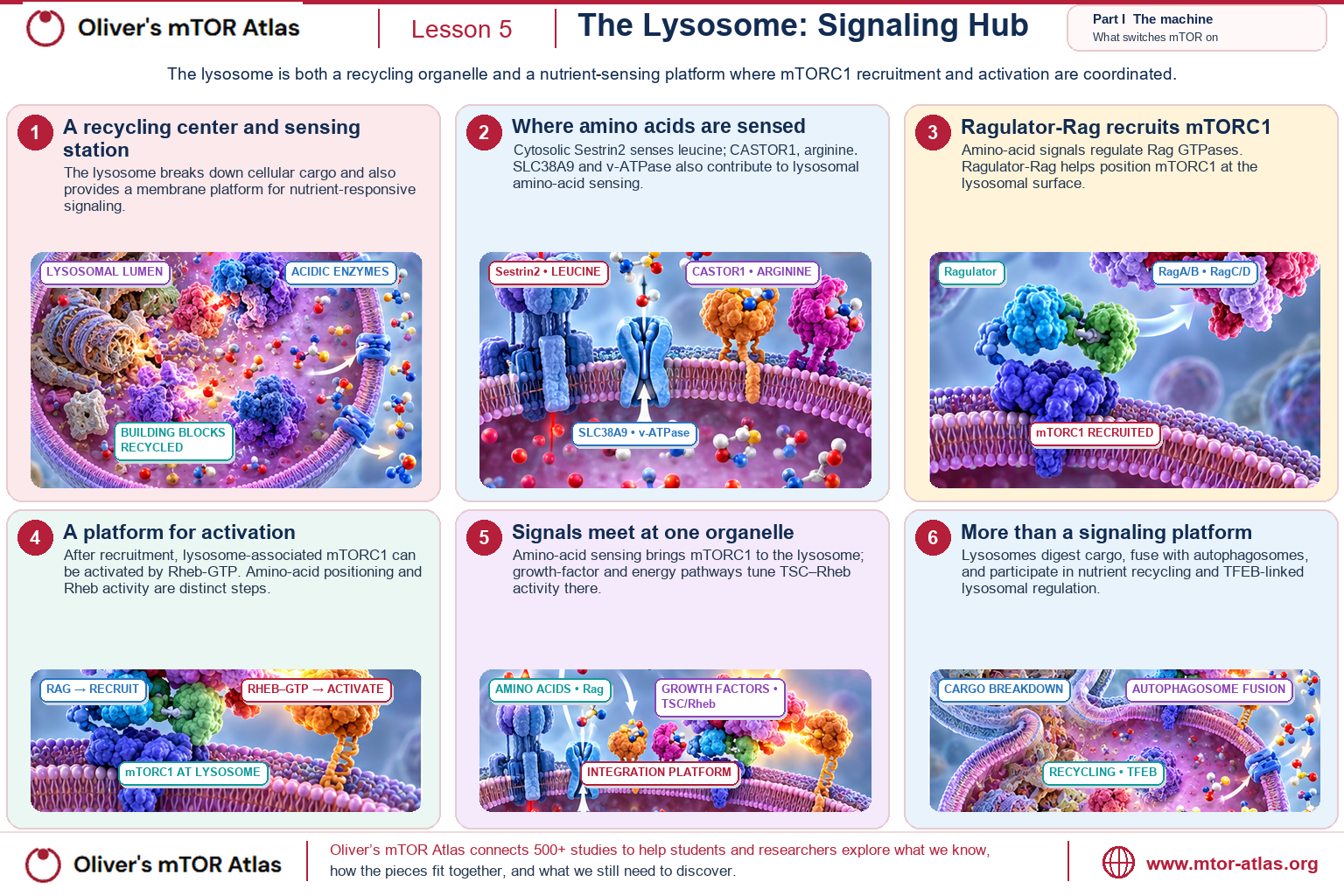

The lysosomal machinery that decides where mTORC1 is, and one thing mTORC1 does once it is there. The controls change the amino-acid supply and the acidification the relay depends on.

mTORC1 at the lysosome · TFEB held in the cytosol

Amino acids in the lumen are relayed outward through the v-ATPase to Ragulator and the Rags, mTORC1 is recruited to the membrane, and one of the things it does there is keep TFEB out of the nucleus.

v-ATPase: Lysosomal proton pump physically and functionally coupled to Ragulator.The pump the sensing machinery is built on.Required for amino-acid signalling; inhibitor experiments cannot fully separate the signalling role from loss of lysosomal acidification.
Ragulator: LAMTOR1–5 complex tethering the Rags to the lysosomal surface.The bolt holding the taxi to the membrane.Also reported as a RagA/B GEF, though the GEF assignment is less secure than the tethering role; LAMTOR1 lipidation anchors the whole assembly.
Rag GTPases: RagA/B–RagC/D heterodimers; nucleotide state determines mTORC1 recruitment.The taxi that brings mTORC1 to the lysosome.Note the inversion: RagA/B is active when GTP-loaded, RagC/D when GDP-loaded. The Rags control mTORC1 *location*, not its catalytic activity.
mTORC1: mTOR–Raptor–mLST8 (+PRAS40, DEPTOR); switched on only at the lysosome.The growth decision itself.Coincidence detector: nutrients supply location via the Rags, growth factors supply activation via Rheb. Neither alone is sufficient — the single most important idea in the pathway.
TFEB: Transcription factor for lysosomal and autophagy genes; excluded from the nucleus when phosphorylated by mTORC1.The master switch for recycling genes.Phosphorylated on S211 in a Rag- and FLCN-dependent, substrate-selective manner; this is the clearest case where mTORC1 substrate choice — not overall activity — is the regulated variable.

This is a simplified teaching model with a fixed set of states, not a simulation. It shows the direction each control pushes the pathway, not how much, how fast, or what any particular cell would do.

Every state of this model

Amino acids	Lysosomal acidification	Readout	What it means
HIGH	normal	mTORC1 at the lysosome · TFEB held in the cytosol	Amino acids in the lumen are relayed outward through the v-ATPase to Ragulator and the Rags, mTORC1 is recruited to the membrane, and one of the things it does there is keep TFEB out of the nucleus.
HIGH	blocked	mTORC1 in the cytosol · TFEB free to enter the nucleus	Block acidification and the relay stops even though the amino acids are still there. This state is also the warning in this lesson: the pump has several jobs, so an experiment that blocks it cannot say by itself which one carried the effect.
LOW	normal	mTORC1 in the cytosol · TFEB free to enter the nucleus	The ordinary starved state. mTORC1 is not inhibited so much as left in the wrong compartment — it never reaches the membrane where its activator waits.
LOW	blocked	mTORC1 in the cytosol · TFEB free to enter the nucleus	Two reasons for the same picture, and no way to tell them apart from this readout — which is the practical form of the caution above.

Why this changed how the pathway is drawn

Before this work, mTORC1 regulation was drawn as a chain of kinases: signal in, phosphorylation, output. The lysosomal picture adds a dimension that a kinase chain cannot represent — compartment. A component can be present, competent and still inactive because it is in the wrong place, and a regulator can act by moving something rather than by modifying it.

This also reframes what a 'sensor' is. Nothing here measures amino acids in the way a thermometer measures temperature. What the cell has is a set of protein interactions whose affinities change with amino-acid occupancy, arranged so that the net effect is recruitment. Calling the assembly a sensor is a useful compression; it should not be read as implying a dedicated measuring device.

One consequence worth carrying forward: a manipulation that changes lysosomal function — pH, position in the cell, membrane composition — can change mTORC1 signalling without touching any part of the pathway you would list on a diagram.

This changed how the pathway is drawn, because it added a question no chain of arrows can show: where is each part?

A protein can be present, working and still have no effect, because it is in the wrong compartment. And something that changes the lysosome — its acidity, where it sits in the cell — can change growth signalling without touching any protein you would list on a diagram.

What this lesson is not claiming

That the lysosome is the site of mTORC1 signalling is a simplification, and one the field itself has been steadily complicating. mTORC1 activity has been described at other membranes and in other compartments, and how much of a cell's total mTORC1 output happens at the lysosome, in which cell types, is not resolved. Treat the lysosomal platform as the best-described site rather than the only one.

What does the evidence say?

These are Atlas studies, with the Atlas's own evidence tier. Each card links to the full record — nothing here restates it.

DThe Rag GTPases bind raptor and mediate amino acid signaling to mTORC12008

Identifies the Rag GTPase family as the missing link that lets mTORC1 sense amino acids by controlling whether mTOR is positioned near its activator Rheb.

Study page →

DRagulator-Rag complex targets mTORC1 to the lysosomal surface and is necessary for its activation by amino acids2010

Established WHERE mTORC1 gets switched on: the lysosome surface.

Study page →

DmTORC1 senses lysosomal amino acids through an inside-out mechanism that requires the vacuolar H(+)-ATPase2011

Showed amino acid sensing starts INSIDE the lysosome: amino acids accumulate in the lumen and the v-ATPase relays that signal outward ('inside-out') to Ragulator-Rag.

Study page →

DRagulator is a GEF for the rag GTPases that signal amino acid levels to mTORC12012

Ragulator is the guanine-nucleotide exchange factor activating the Rag GTPases on the lysosome.

Study page →

DA lysosome-to-nucleus signalling mechanism senses and regulates the lysosome via mTOR and TFEB2012

A lysosome-to-nucleus mechanism uses mTOR-dependent TFEB phosphorylation to sense lysosomal state.

Study page →

DStructural basis for the docking of mTORC1 on the lysosomal surface2019

Structure shows how mTORC1 docks onto the Rag-Ragulator lysosomal scaffold.

Study page →

How much of a cell's mTORC1 output happens at the lysosome rather than at other membranes, and how that balance differs between cell types, is unresolved. Most of the assembly was described in cultured cells under strong amino-acid withdrawal and re-addition, which is a much sharper stimulus than a cell normally experiences.

Work through it

Each of these asks you to commit to something — a prediction, a reading of two studies, a design — before it answers. Everything here is in the page, so nothing is lost if you would rather just read it.

Compare the evidence

Where the amino-acid signal starts

	D Ragulator-Rag complex targets mTORC1 to the lysosomal surface and is necessary for its activation by amino acids	D mTORC1 senses lysosomal amino acids through an inside-out mechanism that requires the vacuolar H(+)-ATPase
Model system	Human cells + Drosophila	Human cells + cell-free reconstitution
Perturbation	Human cells and Drosophila: components of the Rag–Ragulator machinery removed or mislocalised, and mTORC1 followed.	Human cells plus cell-free reconstitution: the v-ATPase inhibited or reconstituted, with lumenal amino-acid content manipulated.
Readout	Where mTORC1 is. Without Ragulator, mTORC1 fails to reach the lysosomal surface and is not activated by amino acids.	Rag activity and mTORC1 signalling, which track amino acids inside the lysosomal lumen and require the proton pump to relay the signal outward.

What do both studies support?

That the lysosomal surface is where mTORC1 is switched on, and that the Rag–Ragulator machinery is what puts it there. Both make the compartment part of the mechanism rather than a backdrop.

Where do they differ?

In where they place the measuring step. The first is compatible with a cytosolic signal arriving at a lysosomal platform; the second puts the sensed pool inside the lumen and makes the pump part of the relay. That is a real disagreement about mechanism, not a difference of emphasis, and it is why the second result was surprising rather than confirmatory.

What experiment would help next?

Anything that reports lumenal amino-acid content directly and continuously, in living cells, while Rag activity is measured at the same time — the two claims differ about a quantity that has mostly been inferred rather than watched.

Scientific caution

What ‘mTORC1 is activated at the lysosome’ supports

What this evidence supports

That the lysosomal surface carries the machinery that recruits mTORC1, and that recruitment is amino-acid dependent in the cells tested
That disturbing lysosomal function changes mTORC1 signalling

What it does not establish

That the lysosome is the only place mTORC1 signals — activity has been described at other membranes
That a result from an inhibitor of the v-ATPase can be attributed to the signalling relay rather than to the compartment's other jobs
That amino-acid withdrawal and re-addition in culture resembles anything a fed animal experiences

Why?

The assembly was described in cell lines under sharp withdrawal-and-re-addition protocols, and the compartment does several things at once — degradation, efflux, acidification — which a single inhibitor cannot separate.

Think

Suppose you block the v-ATPase pharmacologically and mTORC1 signalling falls. What are at least two explanations for that result, and how would you tell them apart?

The pump does more than one job for the cell.

Think first, then reveal

The intended reading is that the pump is required to relay the lumenal amino-acid signal to Ragulator and the Rags. But the v-ATPase also acidifies the lysosome, and acidification is needed for degradation, for amino-acid efflux from the lumen and for lysosomal function in general — so blocking it could lower mTORC1 signalling simply by starving the compartment of the amino acids it is supposed to be reporting, or by degrading lysosomal function broadly. Distinguishing them needs experiments that separate the pump's transport role from its signalling role: acute versus chronic inhibition, measuring lumenal amino-acid content directly, reconstitution in cell-free systems, or separation-of-function mutants. This is a good example of why an inhibitor result rarely licenses a mechanistic claim on its own.

TFEB drives transcription of lysosomal genes and is held inactive by mTORC1 at the lysosome. What kind of loop is that, and what would you expect after a long period of nutrient starvation?

Trace the sign of each step, then ask what the cell has more of at the end.

Think first, then reveal

It is a negative feedback loop with a delay: low mTORC1 activity releases TFEB, TFEB drives production of more lysosomes and autophagy machinery, and more functional lysosomes eventually mean more degradation and more amino acids released into the cytosol — which raises mTORC1 activity again and re-inhibits TFEB. So a prolonged starvation would be expected to produce lysosomal biogenesis followed by partial restoration of mTORC1 signalling, rather than an indefinite off-state. That expectation comes largely from cell work with strong starvation protocols; what happens in tissue during ordinary fasting is much less well described.

Check yourself

Three questions, easiest first. Nothing is recorded and there is no pass mark — the explanation after each answer is the part worth reading.

Question 1 · Warm-upWhat holds the Rag GTPases at the lysosomal surface?

Show the answer

B — The Ragulator complex. The Rags are not membrane-anchored on their own. Ragulator tethers them to the lysosome and acts on their nucleotide state, which is what makes the surface a platform rather than a passive membrane.

Question 2 · Step upAmino acids recruit mTORC1 to the lysosome. Why is that recruitment not the same thing as activating it?

Show the answer

B — Because the kinase still needs to meet Rheb in its GTP-bound state, which the growth-factor branch controls. Docking puts the kinase where its activator lives. Whether that activator is loaded is a separate question answered by a different branch — which is why neither input alone is sufficient.

Question 3 · HarderA drug that raises lysosomal pH lowers mTORC1 signalling in a cell line. Which inference is best supported?

Show the answer

C — Something about lysosomal function is required for normal mTORC1 signalling — which of the compartment's several jobs is responsible is not yet distinguished. Raising the pH disturbs degradation, amino-acid efflux and the v-ATPase-dependent relay at once. The observation is real and the mechanism is underdetermined until those roles are separated experimentally.

Go deeper

Rag GTPases Raptor Rheb TFEB SLC38A9 mTORC1 Ragulator Autophagy Lysosome

Follow a guided route through the mechanism:

How does a cell know it has enough raw material to grow?The amino-acid route, which is this platform seen end to end.
What does a cell actually do when mTORC1 fires?What changes downstream once mTORC1 is switched on here.

Concepts introduced in this lesson

Compartmentalised signalling · Scaffold and recruitment · Inside-out sensing · Organelle-to-nucleus signalling
